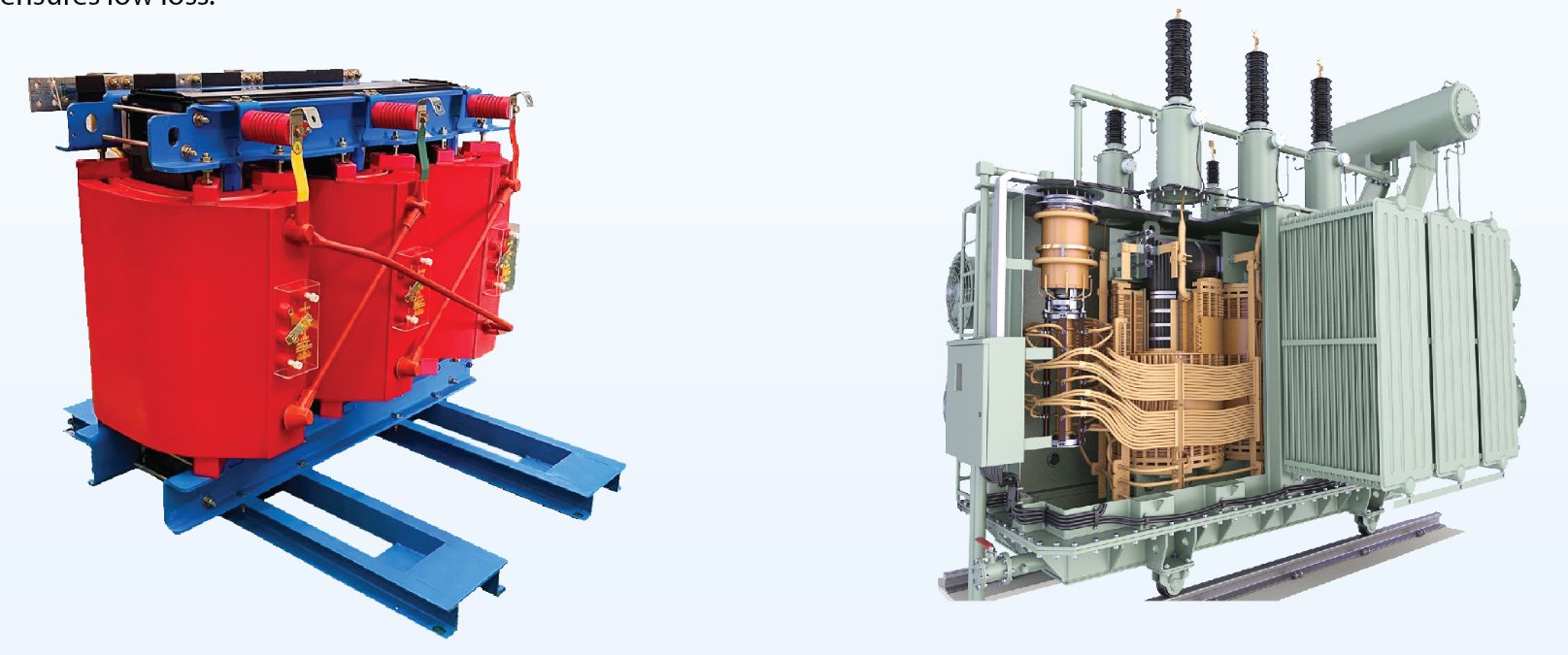

PDEL manufactured Distribution Transformer, Power Transformer, Special Transformer are energy efficient, environment friendly, slim, cost effective and ensures low loss.

Our Remarkable Features:

  • Compact, Low maintenance designs that are built for trouble-free operation.
  • Laser-Grade type high efficient tank design.
  • High reliability for lifetime.
  • Greater Value for Money.
  • Quick Delivery.
  • Long warranty period.

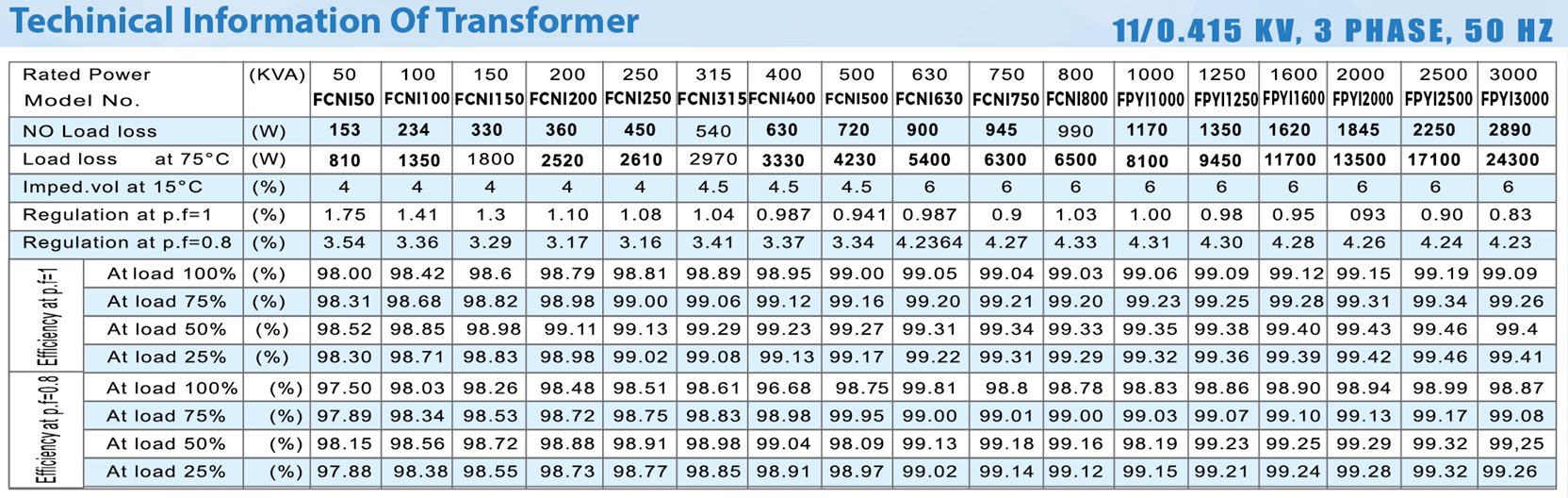

  STANDARDS            • IEC-76, BS-1 71 , ANSI C57.12, VDE 0537

FREQUENCY             : 50 Hz, on request 60 Hz

RATINGS                 • For ratings higher than 50 MV A please consult us

PRIMARY VOLTAGE • For values above 24 kV and up to 36 kV please consult us. Double high voltages (example 15-20 kV) can be offered

STANDARD TAPPINGS : ± 2.5 96; ± 5 % or ± 96; -7.5 % and others on request SECONDARY VOLTAGE : 400 to 433 V other values may be offered.

Double low voltages with 7 LV bushings can be offered with full rating on both voltages or with reduced rating (75%) on lowest voltage
